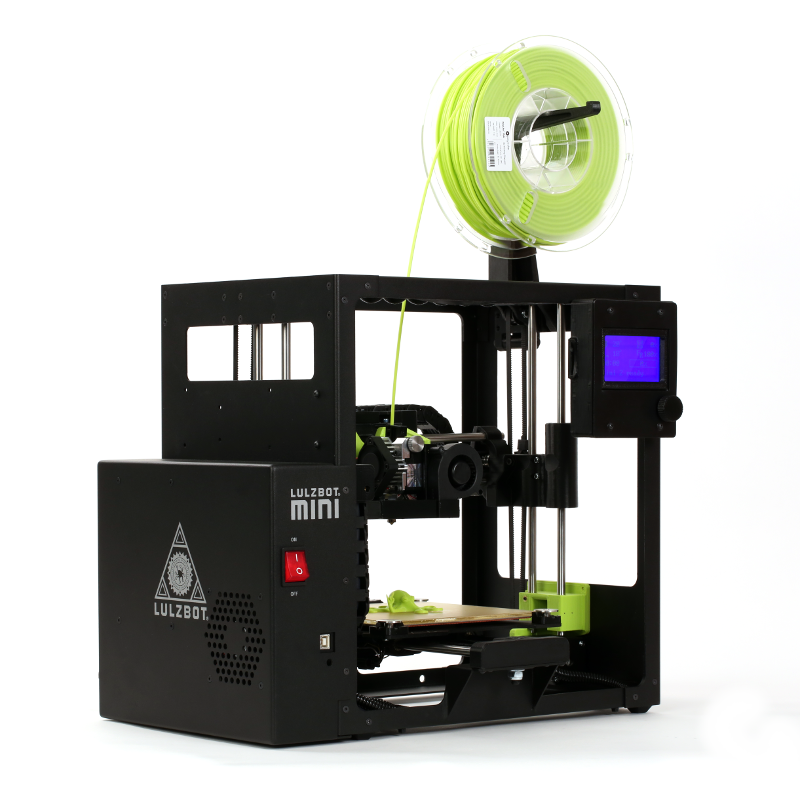

Lulzbot Mini 2 3D Printer

SKU: 2.04
$1,989.99 CAD

    Available Add-ons

Canada's Source for the Lulzbot Mini 2

Canada's source for Lulzbot Mini 2 3D printers!




What is new with the Lulzbot Mini 2?

    • 20% larger build volume with no increase in footprint
    • Innovative belt-driven Z-axis for better print quality and faster cycle times
    • GLCD Controller for tetherless 3D printing

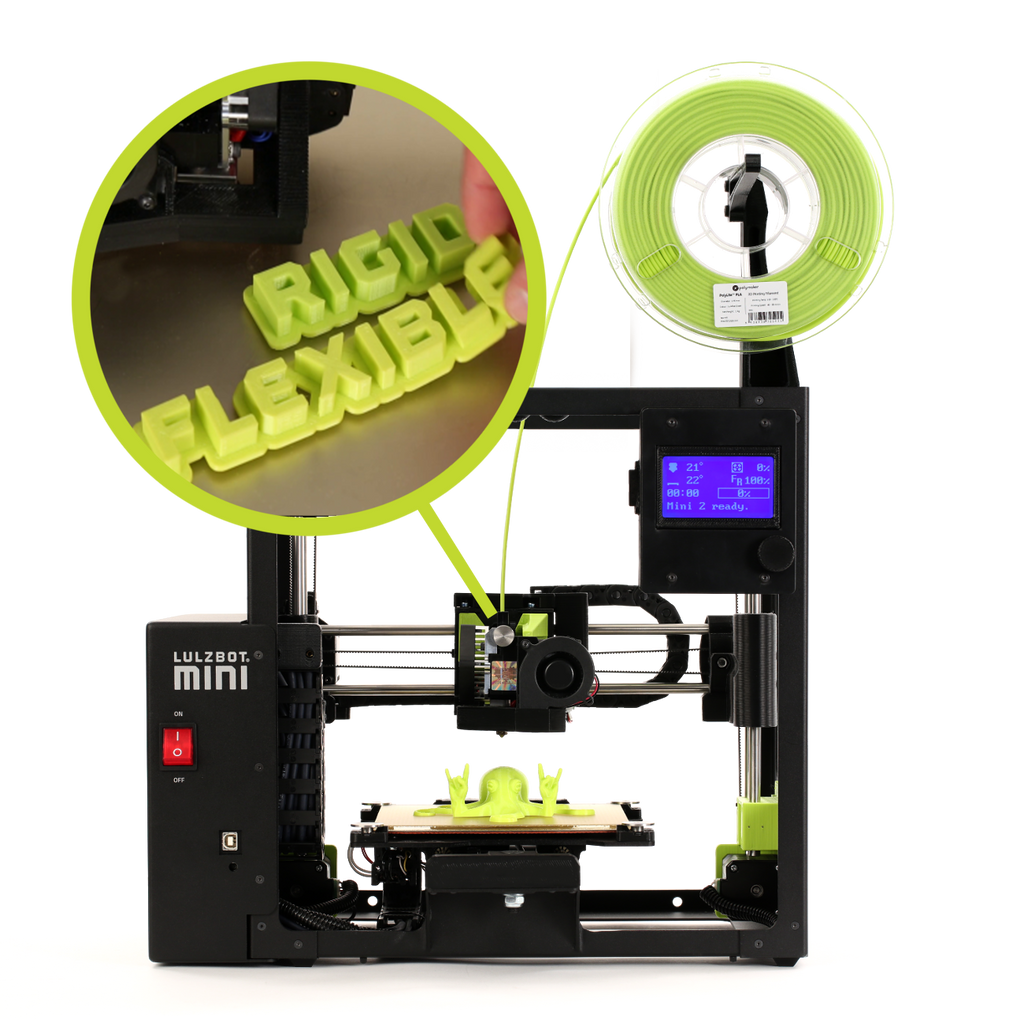

    • Prints both rigid and flexible filaments out of the box
    • Whisper quiet operation thanks to new Trintamic TMC2130 stepper motor drivers and premium igus® polymer bearings

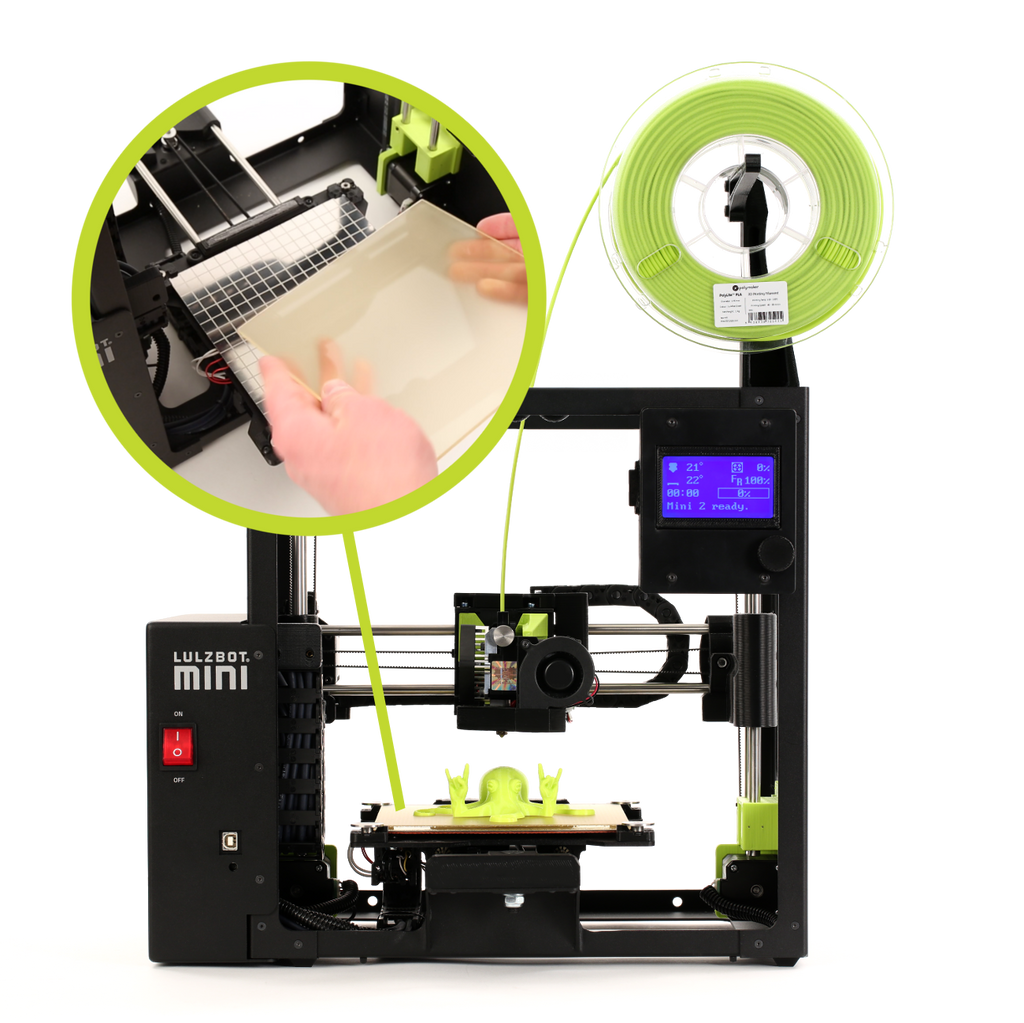

    • The new Modular Print Bed System heats up quickly and features reversible glass/PEI print surface



The Lulzbot Mini 2 may be small, but don't let the compact frame fool you. This printer improves on the award winning design of the Lulzbot Mini Desktop 3D Printer. It is engineered and assembled to meet exacting standards in Colorado, USA. It ships calibrated and ready to meet your toughest printing jobs out of the box. No matter if you are working to meet growing production demands, engineering crucial components, or helping to create the next generation of innovative creators in your classroom, the Lulzbot Mini 2 is up to the challenge.

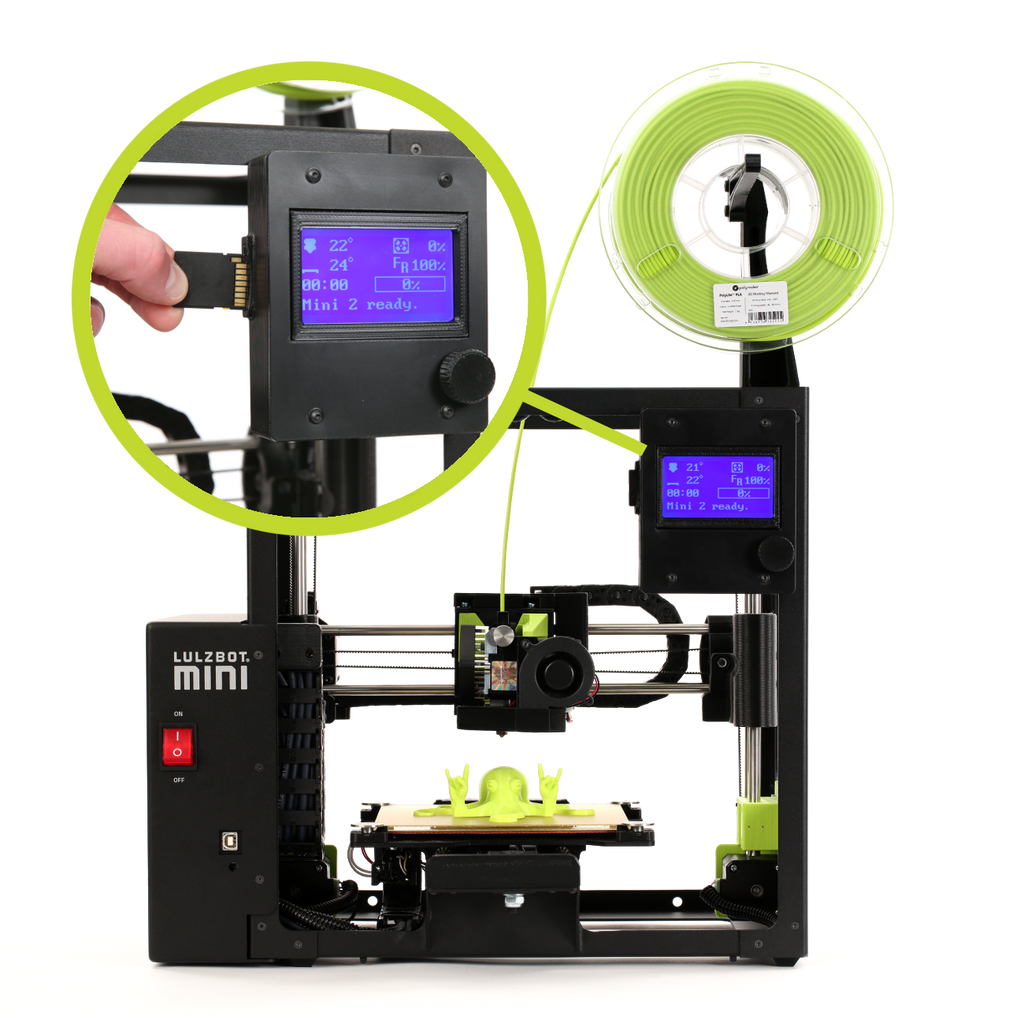

Freedom to unplug
Tetherless 3D printing with Lulzbot Mini 2

Now you can free your computer with the Mini 2’s included Graphical LCD Controller. This allows you to save the G-code file from Lulzbot Cura slicing software and then print wherever you are. Just save to the included SD card, insert it into the printer, and print.



Amazing Print Quality

One of the innovate new features on the Lulzbot Mini 2 is the belt driven Z-axis. This is a huge improvements over the lead screws of the previous generation of the Lulzbot Mini. Lulzbot has gone even further and integrated 360º part cooling. Add this with the latest motion planning firmware and hundreds of preconfigured profiles in Cura Lulzbot Edition and you can see why this printer produces incredible quality parts, right out of the box.



Automatic Bed Levelling

One of the greatest features of the award winning Lulzbot Mini 3D printer is it's integrated automatic bed levelling technology. This makes getting precision bed levelling a breeze. The Lulzbot Mini is a great option for teachers and educational settings with young students.


High Performance Hardware Anyone Can Use

The LulzBot Mini 2 was built to truly be plug & play. There is no complicated assembly procedures so you are ready to create in record time. The Mini still uses the same straightforward software and includes simple to understand documentation.

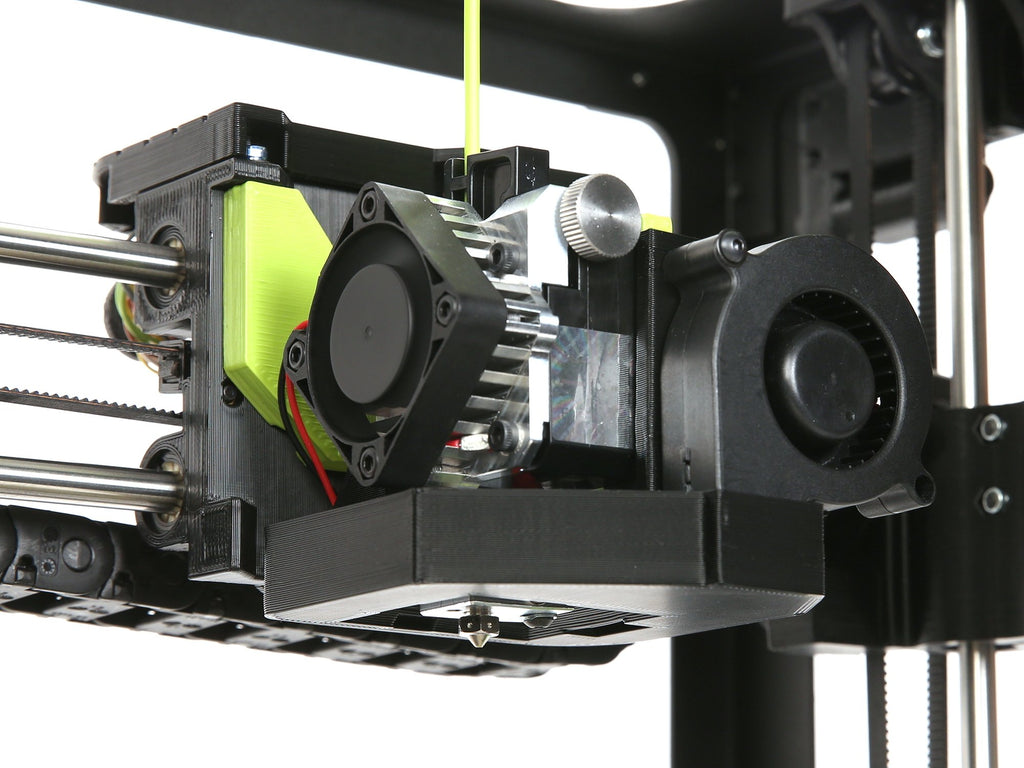

Lulzbot Mini 2 toolhead


Big Potential In A Small Package

The Lulzbot Mini 2 features E3D's Titan Aero extruder.  This all-metal hot end means you can print the strongest materials that require temperatures up to 300C! Along with the new game changing quick change modular print bed and heated PEI printing surface, you can print in a huge array of materials. Not only can you print with these engineering grade filaments but you can also print with both flexible and rigid materials right out of the box.

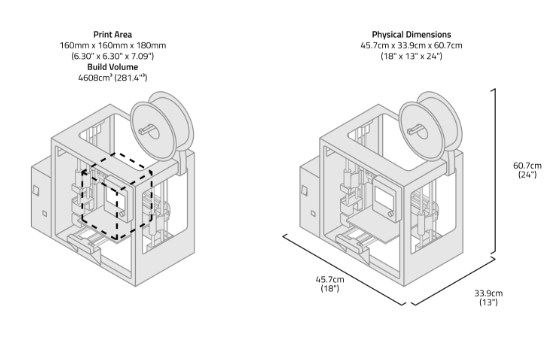

Physical Dimensions

Lulzbot Mini 2 Physical size

Boxed Unit Weight 12kg (26.5lbs)
Unit Weight 9kg (19.85lbs) without filament spool
Boxed Dimensions 58.4cm x 45.7cm x 53.3cm (23in x 18in x 21in)
Dimensions with 1kg Filament Spool 45.7cm x 33.9cm x 60.7cm (18in x 13in x 24in)


Warranty and Support

30 day money-back guarantee - Full return policy

One-year manufacture warranty - Full warranty policy

Lifetime customer support from Print Your Mind 3D

Additional 1, 2, or 3 Year Extended Warranty Available!

Printing

Print Area 160mm x 160mm x 180mm (6.30in x 6.30in x 7.09in)
Print Volume 4608cm³ (281.4in³)
Ambient Operating Temperature From 5°C to 45°C (41°F to 113°F)
Operating Footprint 45.7cm x 40.6cm (18in x 16in)
Maximum Travel Speed 300mm/s
Leveling Automatic Compensation
Connectivity USB Serial and Included 8gb SD Card



Included Tool Head LulzBot Mini 2 Standard Tool Head

Mounting system allows for easy swapping with future tool heads. Note: Not backwards compatible with previous generation LulzBot tool heads.

Extruder/Hot End E3D Titan Aero
Nozzle Diameter 0.5mm
Nozzle Material Nickel-Plated Copper Alloy
Nozzle Temperature Up to 290°C (554°F)
Nozzle Heatup Time From 23°C to 210°C (73°F to 410°F) in 73 seconds
Print Surface Heated Borosilicate Glass/PEI
Maximum Print Bed Temperature Up to 120°C (248°F)
Print Bed Heat Up Time From 23°C to 60°C (73°F to 140°F) in 97 seconds

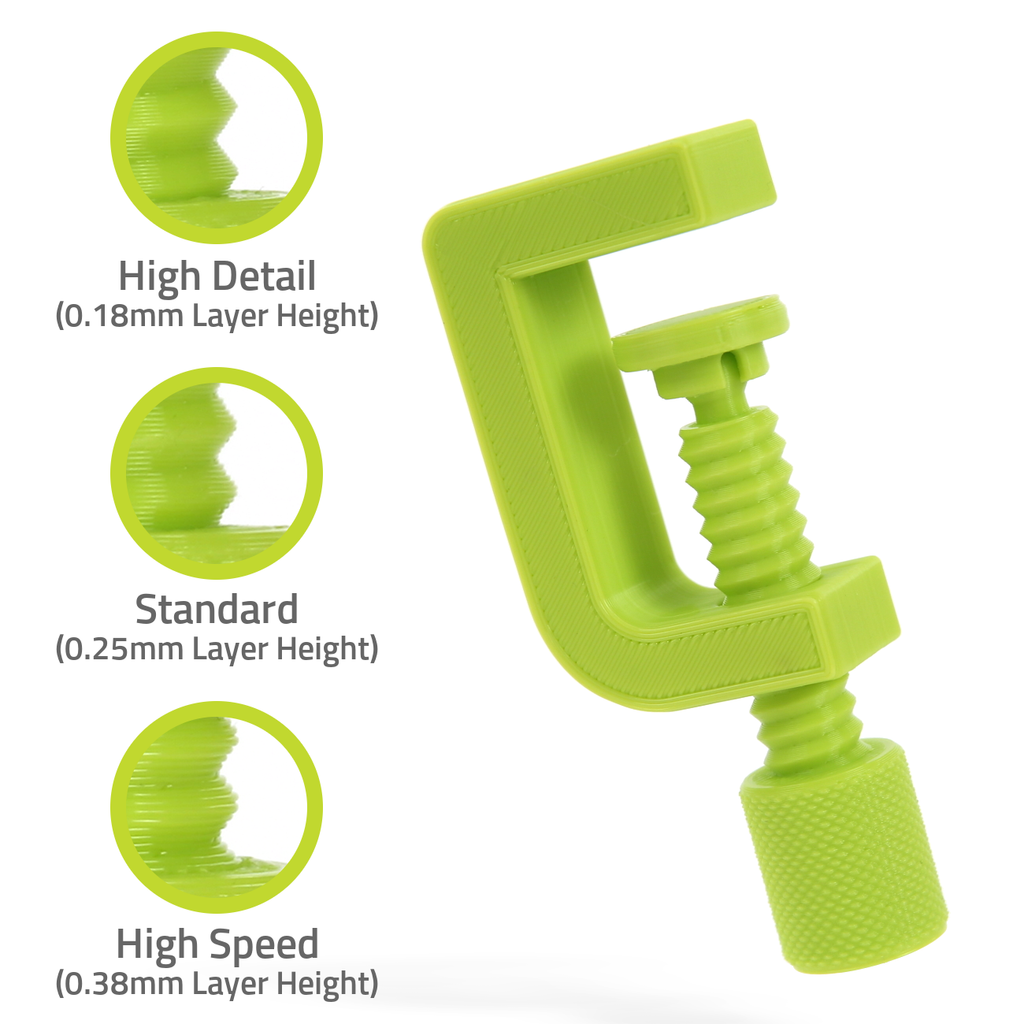

Layer Resolution 0.05mm-0.4mm (0.002"-0.015")
Minimum Positive Feature Size 0.5mm (0.02in)



Material Options

Filament Diameter 2.85mm
Supported Materials Open filament system compatible with PLA, Natural and Metal PLA Blends, TPU, ABS, PETG, nGen, INOVA-1800, HIPS, HT, t-glase, Alloy 910, Polyamide, Nylon 645, Polycarbonate, PC-Max, PC+PBT, PC-ABS Alloy, PCTPE, and more.


Software

Operating System Compatibility GNU/Linux, Mac, Windows
Recommended Software
Firmware Marlin
Supported File Types .stl, .obj, .x3d, .3mf, .png, .jpg


Parts Included

LulzBot® Mini 2 3D Printer

30 day money-back guarantee

Quick Start Guide

LulzBot Mini Reference Poster

5 Replacement Wiper Pads

2mm Allen Wrench

Tweezers

Dental Pick

Flathead Bristle Brush

Part Removal Knife (clam knife)

USB and Power Cable - Tethered use with the USB cable connected is required to operate this machine.

USB Drive with Source Files
