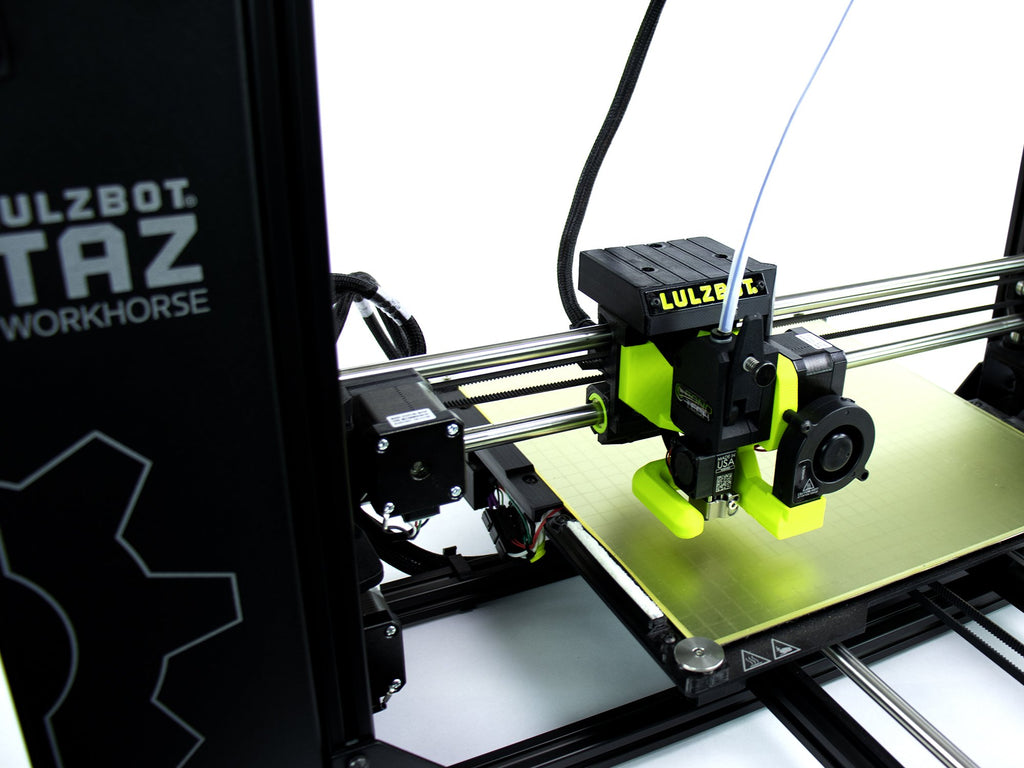

The New Lulzbot M175 Tool Head allows you to print using 1.75 mm filaments.
PRODUCT ALERT (1)
This tool head is currently compatible with the LulzBot Mini 2 3D Printer, LulzBot TAZ Workhorse 3D Printer and LulzBot TAZ Pro 3D Printer. LulzBot Mini 1, TAZ 5 & TAZ 6 users will be able to take advantage of the high-strength 3D printing capabilities with the TAZ 5/6 Universal Tool Head Adapter and the Mini 1 Universal Tool Head Adapter.
Now available for pre-order. Expected shipping in August.
The new M175 0.5mm tool head gives your LulzBot 3D printer the ability to print using 1.75 mm filaments. It also allows an even wider variety of 3D printing materials. The M175 Tool Head is here to bring the world of 1.75 mm material to your LulzBot Mini 2, TAZ Workhorse, and TAZ Pro.
While the most note-worthy feature is undoubtedly the 1.75 mm compatibility, it doesn't stop there. the M175 is capable of printing a wide range of filament including flexible materials as well as abrasive materials.
The newest design boasts a variety of improvement. The quick release lever makes material changes a breeze. A thumbscrew tensioner helps fine-tuning the tension exerted on the filament. The lightweight hot end not only provides better heat break performance but also allows faster prints. The fan duct has also gone through a number of changes, resulting in easier assembly, better cooling and a better view of the printing surface.
Layer Resolution: 0.05 mm - 0.5 mm (0.002 in - 0.020 in)
Filament Diameter: 1.75 mm
Nozzle Diameter: 0.5 mm
Nozzle: Slice Engineering® Bridgemaster™ nozzle
Hot End Temperature Range: 120°C - 290°C (248°F - 554°F)
Hot End Heatup Time: From 23°C to 210°C (73°F to 410°F) in 95 seconds
Extruder & Hot End: Bond Tech BMG, Slice Engineering® Mosquito Hotend®
Required power system: 24 Volts
Fans: (1) 5v 25 mm heat sink cooling fan, and (1) 24v centrifugal print cooling fan
Weight: 436.5 g (0.96 lbs)
