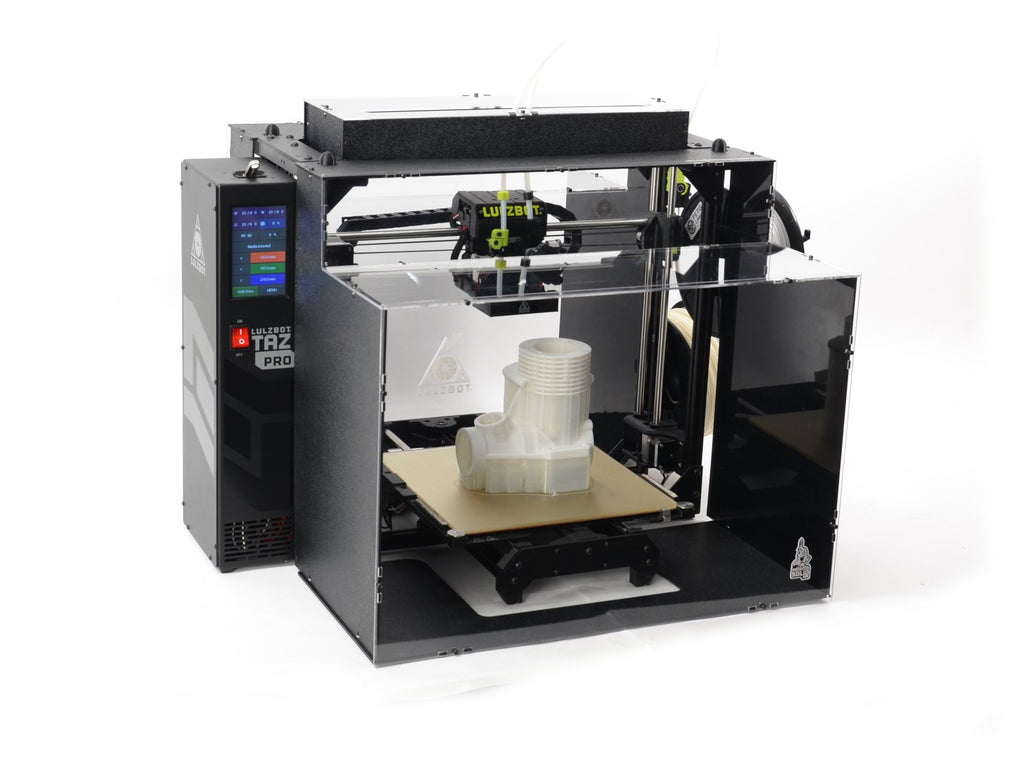

Enclose Your Lulzbot TAZ Pro or Workhorse
Use this ABS acrylic 3D printer enclosure with your LulzBot TAZ Pro or Workhorse to minimize warping and cracking caused by printing in cold and drafty environments, while keeping curious hands and paws away from the heated and moving parts of your 3D printer. This new 3D printer enclosure features a strengthened design with ABS panels, LulzBot branded laser-etched acrylic, and comes ready to assemble with all components provided (no 3D printing required).
- Cold and/or drafty environments
- Printing materials with high shrink rates, like ABS, Nylons (Polyamides), and Polycarbonates
- Classrooms, libraries, and high-traffic areas with curious hands
Lulzbot TAZ Pro/Workhorse Enclosure Features:
This enclosure is made with optically clear, lightweight 3mm thick extruded acrylic and rugged ABS panels. Assembly and installation is easy as this kit contains all the necessary hardware, including the 3D printed corner brackets.
Advanced users can mount a 40 mm fan to vent air from the enclosure, add filtration, and more. When assembled, this enclosure only adds 63.5mm (2.5in) along the length of the Y-axis (front to back).
Laser cut, extruded 3 mm thick acrylic sheets and ABS panels
Two (2) Part A: Top Mount with holes PDF SVG
Two (2) Part B: Shelf PDF SVG
Two (2) Part C: Short Panel PDF SVG
Two (2) Part D: Main Panel PDF SVG
Two (2) Part E: ABS Bottom PDF SVG
One (1) Part F: TAZ Pro Machine Side PDF SVG
One (1) Part WF: TAZ Workhorse Machine Side PDF SVG
One (1) Part G: Top Cover acrylic PDF SVG
Two (2) Part H: ABS Top Front and Back PDF SVG
Two (2) Part I: ABS Top Sides PDF SVG
One (1) Part J: ABS Rear Left / Pro and Workhorse PDF SVG
One (1) Part K: ABS Front Left TAZ Pro PDF SVG
One (1) Part WK: ABS Front Left TAZWorkhorse PDF SVG
One (1) Part L: ABS Front Right PDF SVG
One (1) Part M: ABS Rear Right / Pro and Workhorse PDF SVG
70 M3 10 mm Bolts
70 M3 Square Nuts
4 M4 8 mm Bolts
4 M4 Square Nuts
8 M5 20 mm Bolts
5 Printed Brackets
LulzBot TAZ Pro-Workhorse ABS+ Enclosure by Printed Solid is licensed CC-BY-SA 4.0 International by David Randolph and printedsolid.com
3 mm hex driver for M3 screws
4 mm hex driver for M4 screws
4 mm hex driver for M5 screws
Optional: Painters tape
Optional: Flat razor
2-3 hours, based on skill level
LulzBot TAZ Pro Operating Dimensions (Standard): 83.2 cm x 71 cm x 52 cm (32.76 in x 28 in x 20.47 in)
LulzBot TAZ Pro Operating Dimensions (with Enclosure): 83.2 cm x 77.47 cm x 52 cm (32.76 in x 30.5 in x 20.47 in)
LulzBot TAZ Workhorse Operating Dimensions (Standard): 83.2 cm x 71 cm x 52 cm (32.76 in x 28 in x 20.47 in)
LulzBot TAZ Workhorse Operating Dimensions (with Enclosure): 83.2 cm x 77.47 cm x 52 cm (32.76 in x 30.5 in x 20.47 in)
Enclosure adds an additional 63.5 mm (2.5 in) along the Y-axis (from front to back).
Acrylic can easily crack - do not over tighten the screws. Tighten to hold without movement.
When cleaning, use dish soap or hand wash and a soft, clean cloth. Do not use Windex® or other glass cleaning solutions. Do not use a hard sponge, scrub, or abrasive surface.
Windex is a registered trademark of S.C. Johnson, Inc.
Printed Solid Website
Printed Part Files
3D printed TAZ Pro rear right bracket(STL)
3D printed Taz Pro/Workhorse front left bracket (STL)
3D printed TAZ Pro/Workhorse front right/rear left bracket (STL)
3D printed TAZ Workhorse rear right bracket (STL)
TAZ Pro/Workhorse brackets by David Randolph and PrintedSolid.com used under the CC BY-SA 4.0 license. See Step 5 of the Assembly Instructions .
Emissions and Ultrafine Particles
This is an enclosure designed to minimize the effects of the ambient environment around your printer and keep curious hands and paws away from the heated and moving components of your 3D printer. It does include a built-in location for mounting a 40mm fan to vent air from the chamber and further modifications can be made.
On this subject, Printed Solid notes:
"Some designs use things like HEPA filters to reduce films for things like ABS, HEPA filters are not rated for the ultrafine particles (UFP) that people are concerned about with ABS. A better approach for managing these particles (aside from simply not using ABS) is to maintain a small pressure differential so that the enclosure is at a lower pressure than the room and particles do not flow out. You would then tie this exhaust into exhaust leaving the room."
