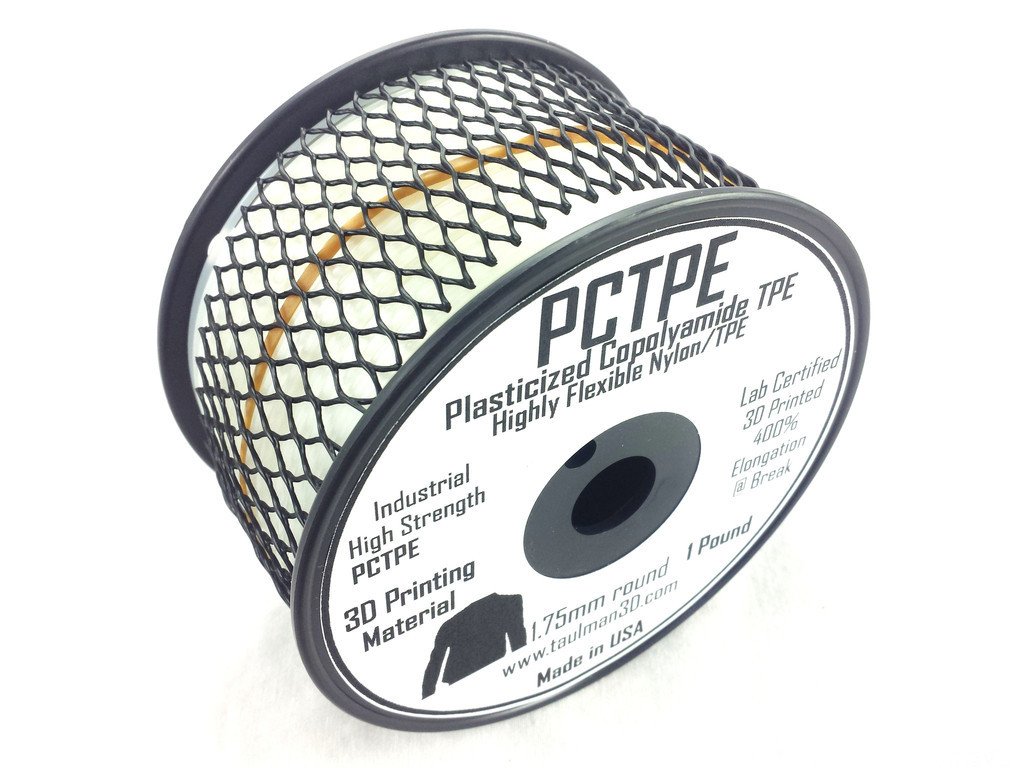

PCTPE is a specialty strong flexible material developed by Taulman 3D. It offers the strength of a nylon with the flexibility of a semi-flexible
"PCTPE stands for "Plasticized Copolyamide TPE" or a chemical co-polymer of highly flexible nylon and TPE (thermoplastic elastomer) . PCTPE has several unique features that allow any user to print a highly flexible part with the added durability of our nylon polymers. This combination of polymers was developed specifically to allow anyone using current FFF 3D Printers to print parts from durable prosthetics to complete cosplay wearable outfits, cell phone enclosures as well as highly flexible utility/industrial parts. The flexibility of PCTPE means that the end parts will have the smooth lustrous texture of nylon, the added flexibility offered by a rubber like TPE, yet maintain the high durability and non-delaminating benefits of all taulman3D Printing materials."
Main Features
Proven performance = Tested worldwide by the 3D Printing community - summer of 2014.
Prints on bowdens or direct drive extruder. = From 1.75mm SeeMECNC "MAX" bowden to LULZBOT "TAZ" direct drive.
Print temperature = 230C
Low shrinkage = prints on glass with a 50% water/PVA glaze heated to 40C
Super Layer to layer bonding that allows for single perimeter walls to be folded along thread axis.
Takes on any acid based color dye (RITT) very fast = 5 min @ 140F
Takes on acid based antimicrobial coatings for footwear and prosthetics.
Color = Bright White/reflective Nylon surface
Tensile PSI = 5,043
Modulus PSI = 10,954
Elongation @ Break = 497%+
Recommended Taulman PCTPE Filament
Print temp = 230C - 238C
Nozzle = any size
Print speed = 80% of ABS speeds
Retraction = 1mm/.1mm nozzle or for a .5mm nozzle = 5mm
Print bed = Hot = Glass heated to 40C with coat of PVA
Cold = BuildTak with coat of PVA
STORAGE: Every order comes with one large resealable bag with slider + an extra desiccant included. It is important to store your filaments in a dry area to avoid moisture absorption when not in use. The bag and desiccant ensure your filaments stay dry and free of dust & dirt to make sure your next project prints without a hitch.
*All Taulman3D materials are made in the U.S.
*All Nylon Bridge filaments come in 1 lb spools
*For further information on Nylon Bridge, check out the Taulman 3D website.
*Print Your Mind 3D is an authorized Canadian distributor of Taulman 3D products.
